Mitsubishi Airtrek Parts

[DeaconFrost]

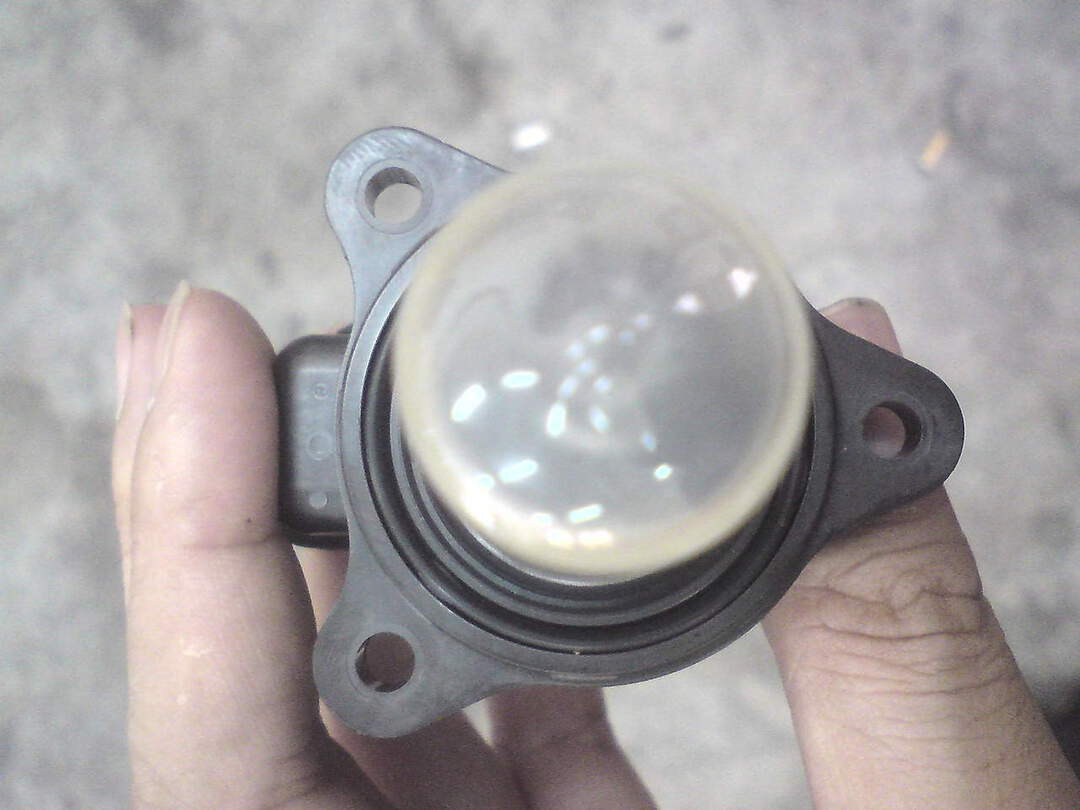

Idle Control Valve (ICV):

Note: Although ICV meant for other Mitsubishi models can fit, note the difference (Mitsubishi Airtrek ICV on right).

Engine Bearing:

Note: Although bearing meant for other Mitsubishi models (example: VR4) can fit, note the difference (Mitsubishi Airtrek engine bearing on right - bulged centre). See the effects of fitting wrong bearing in 3rd post.

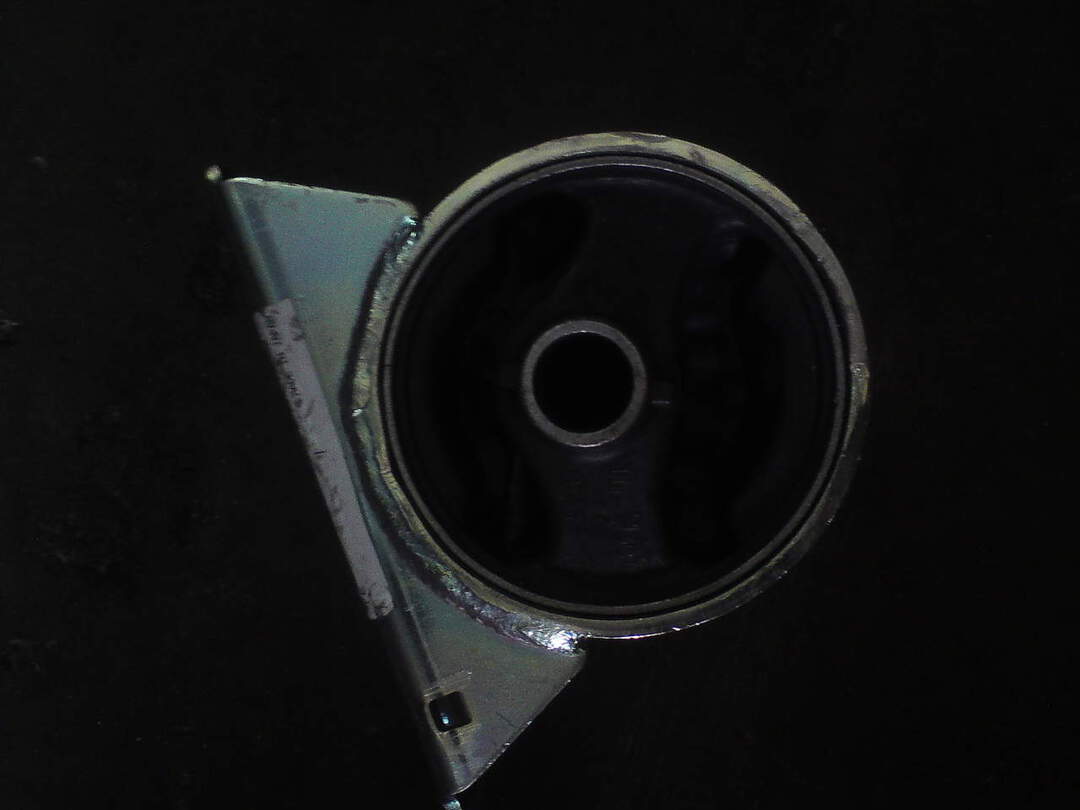

Engine Mountings:

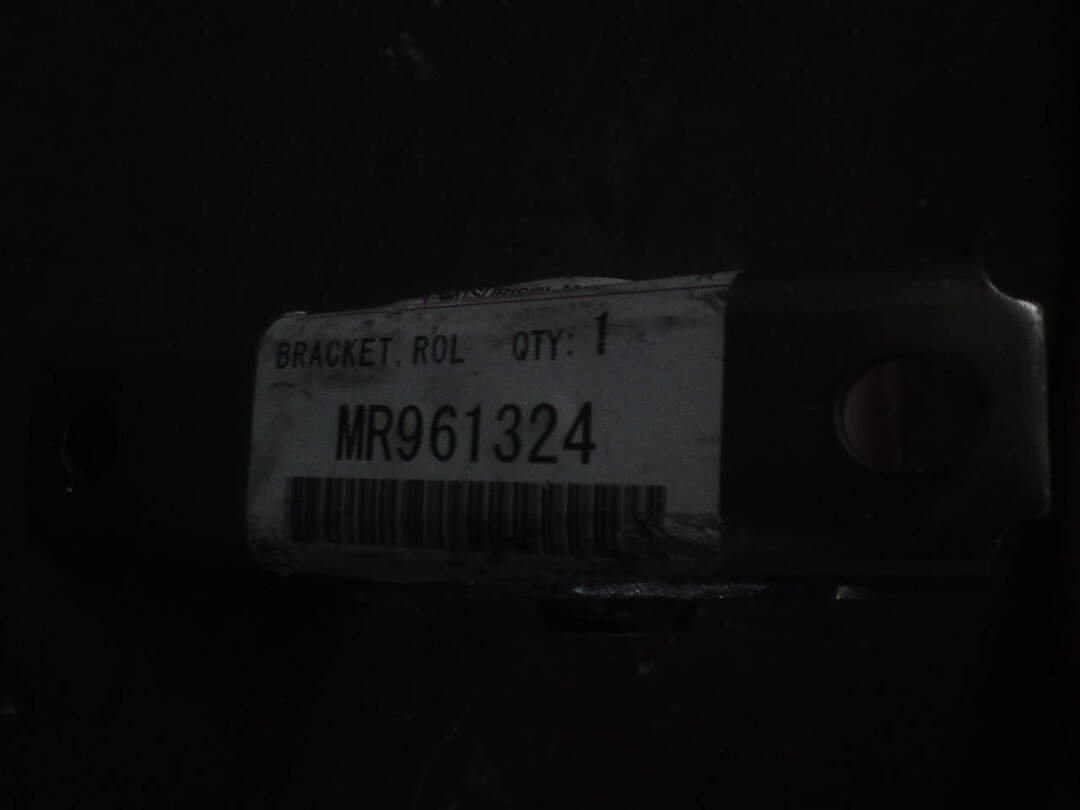

MR961324 Bracket, engine roll stopper

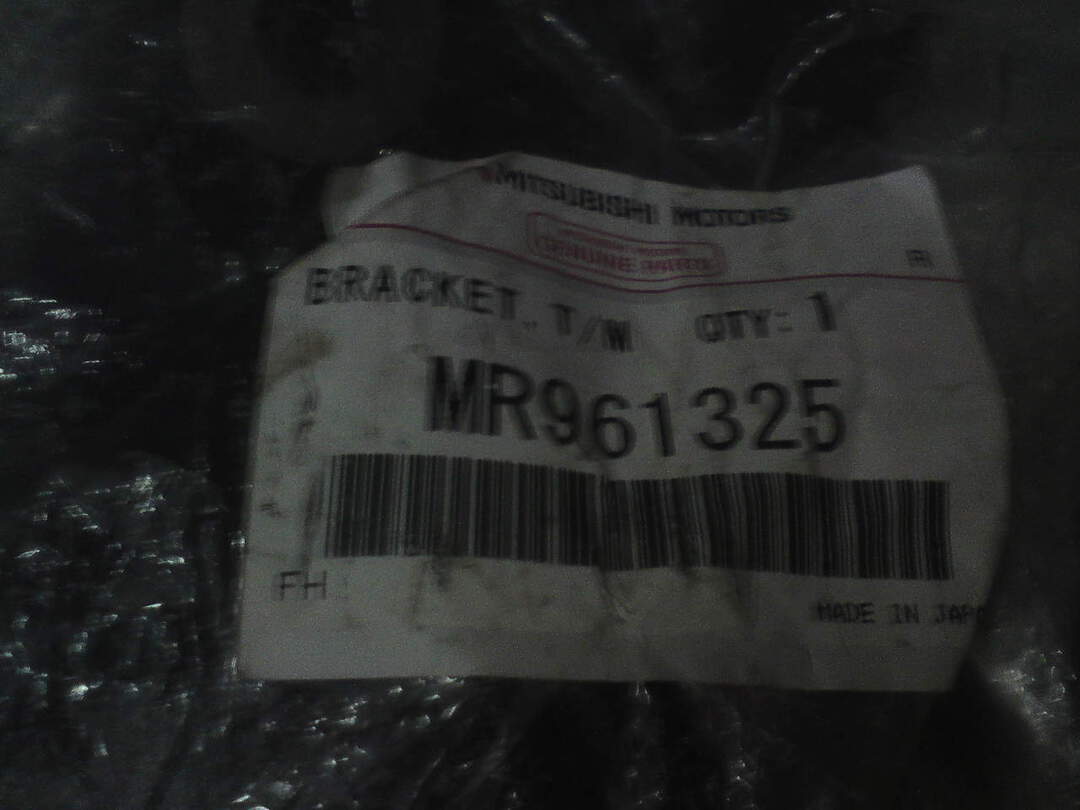

MR961325 Bracket, T/M mounting body side

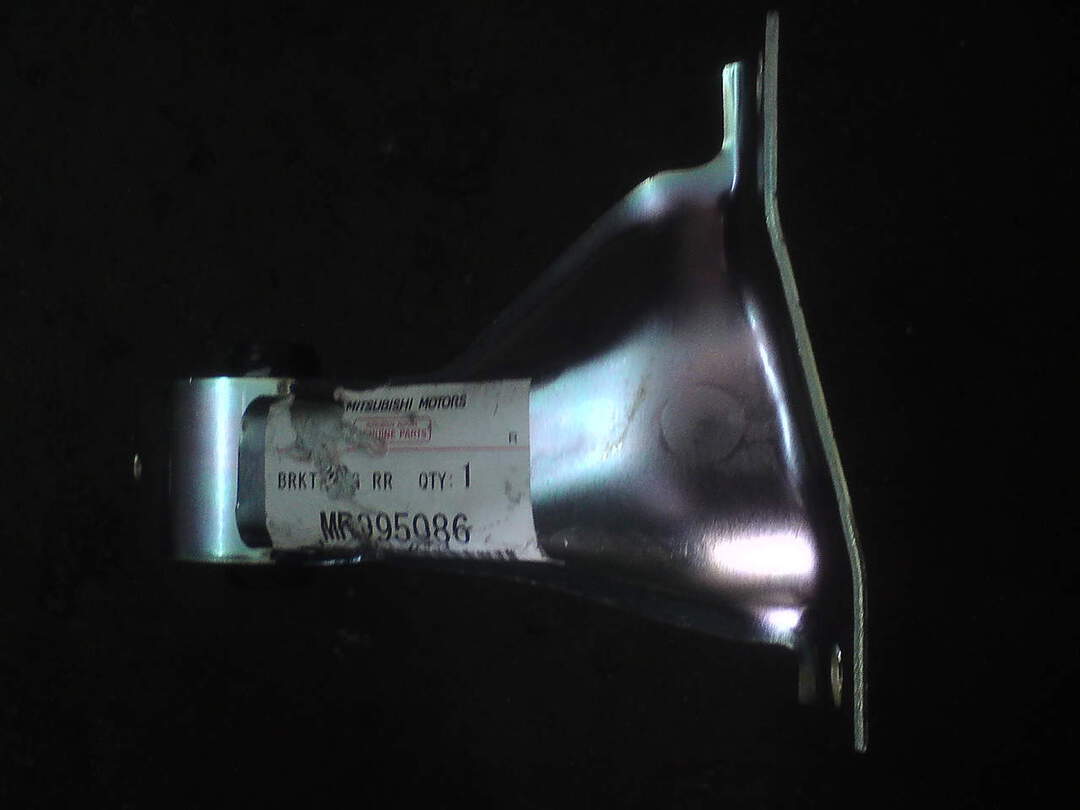

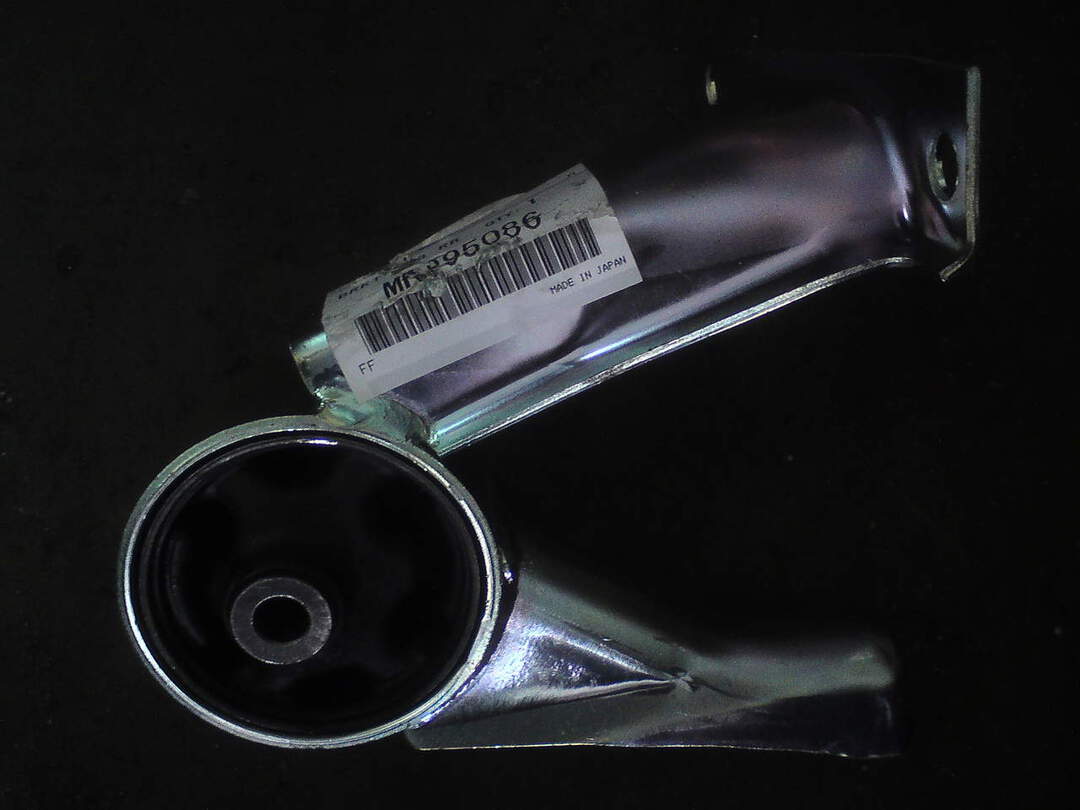

MR395086 Bracket, RR

MR510407 Rubber, gearbox

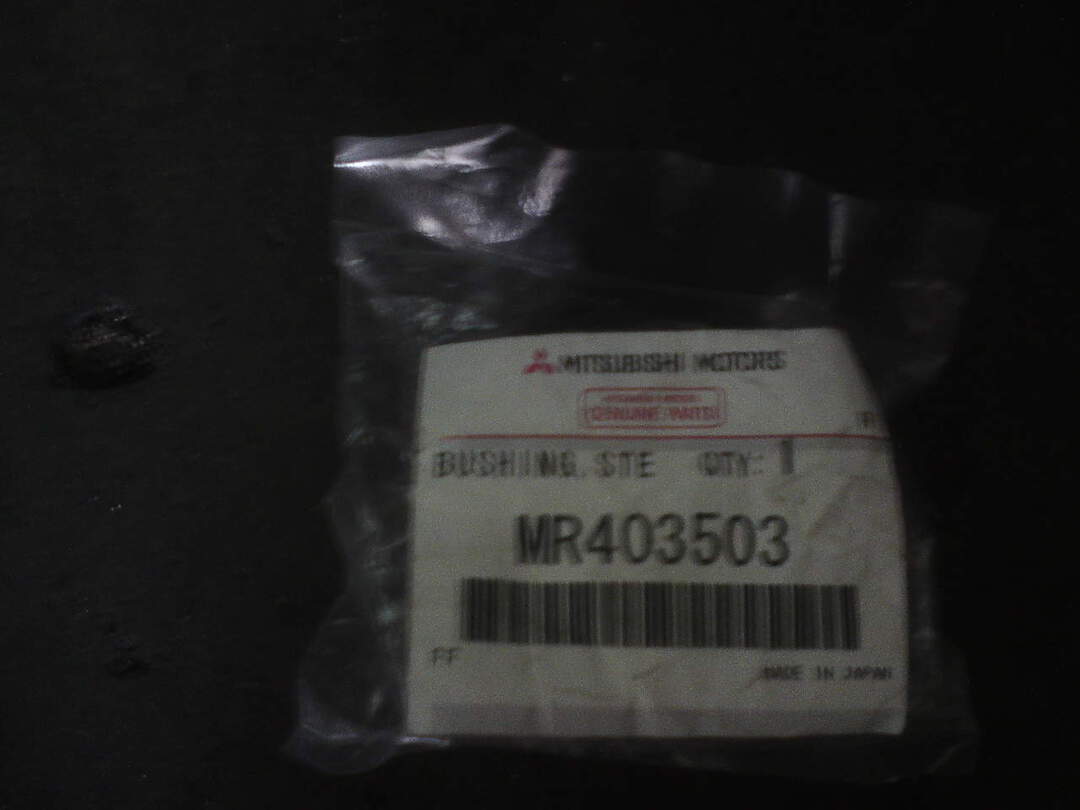

MR403504 Bushing, steering

Relay:

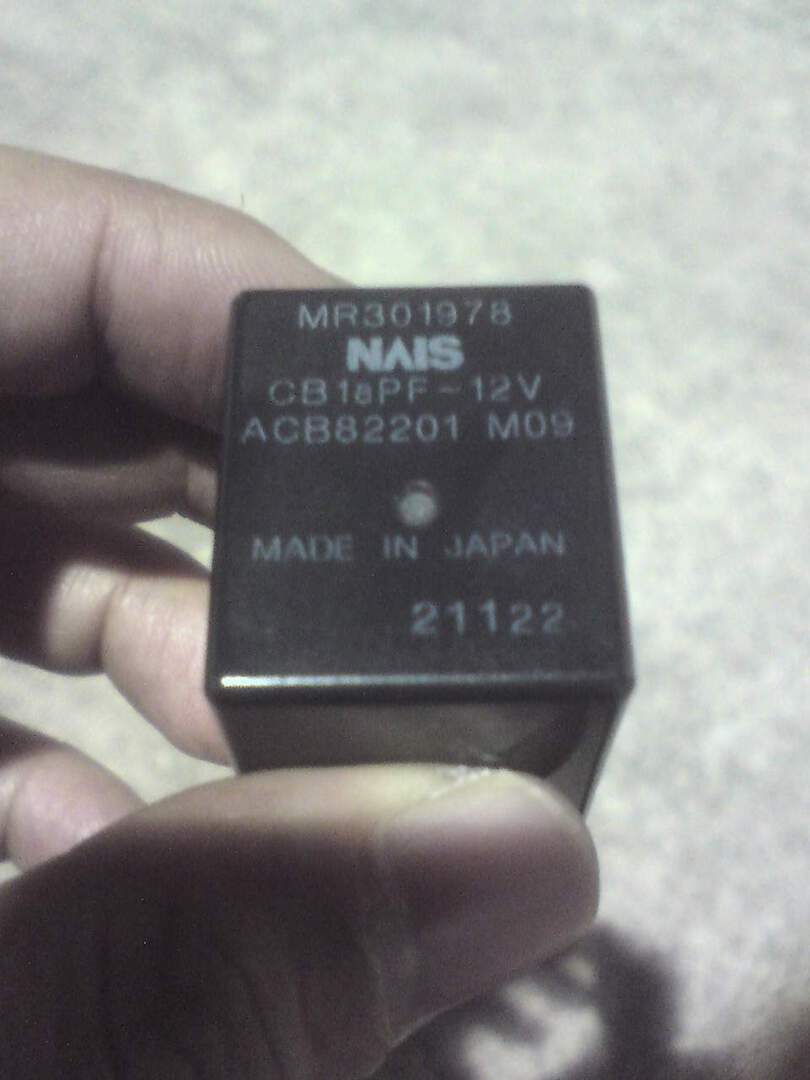

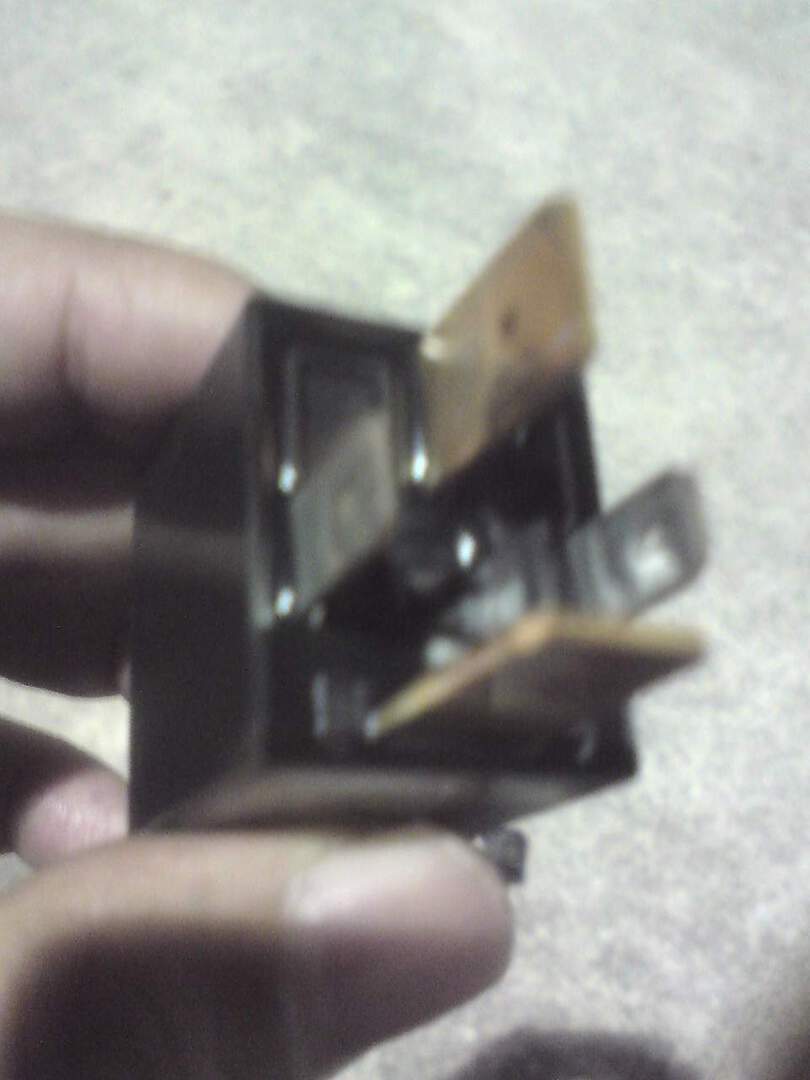

MR301978 Relay

Power Window Switch:

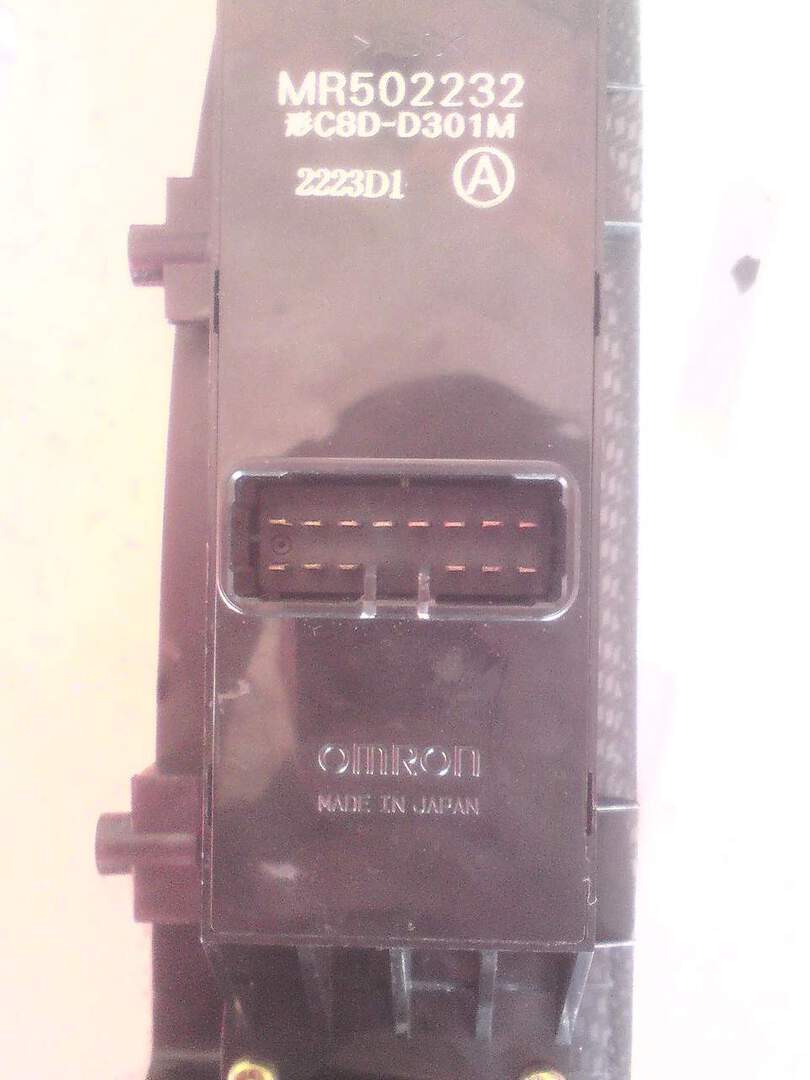

MR502232 Switch assembly, FR door power window driver side

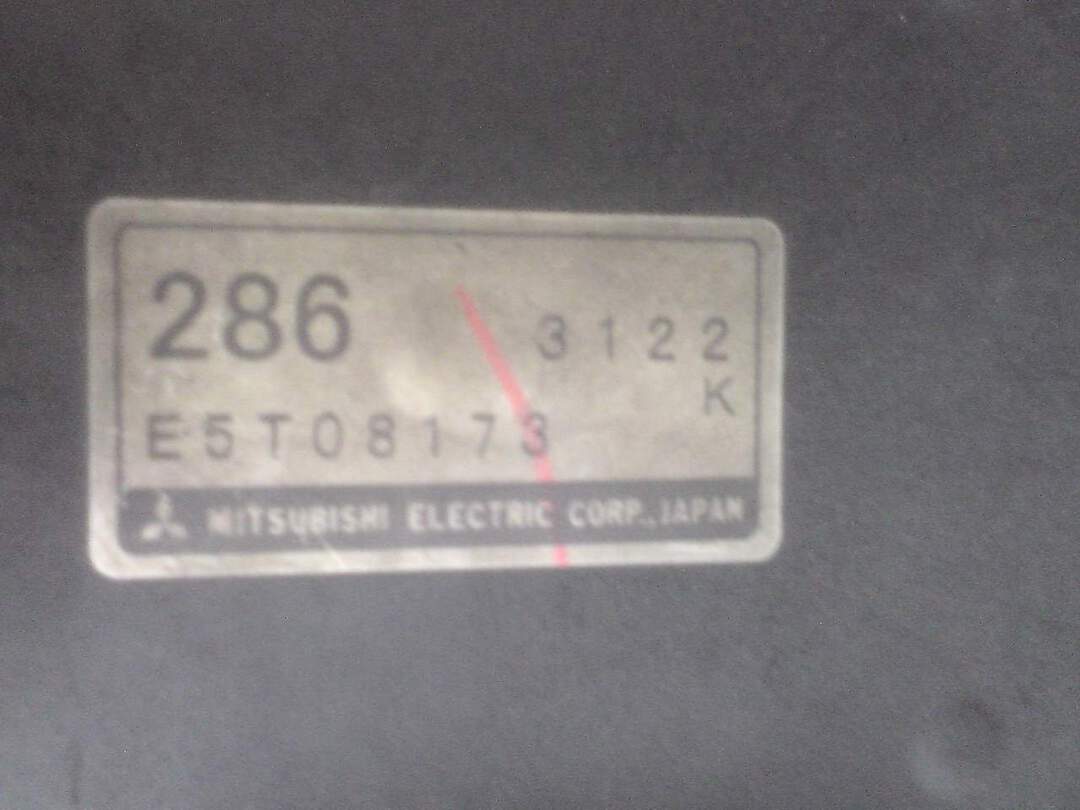

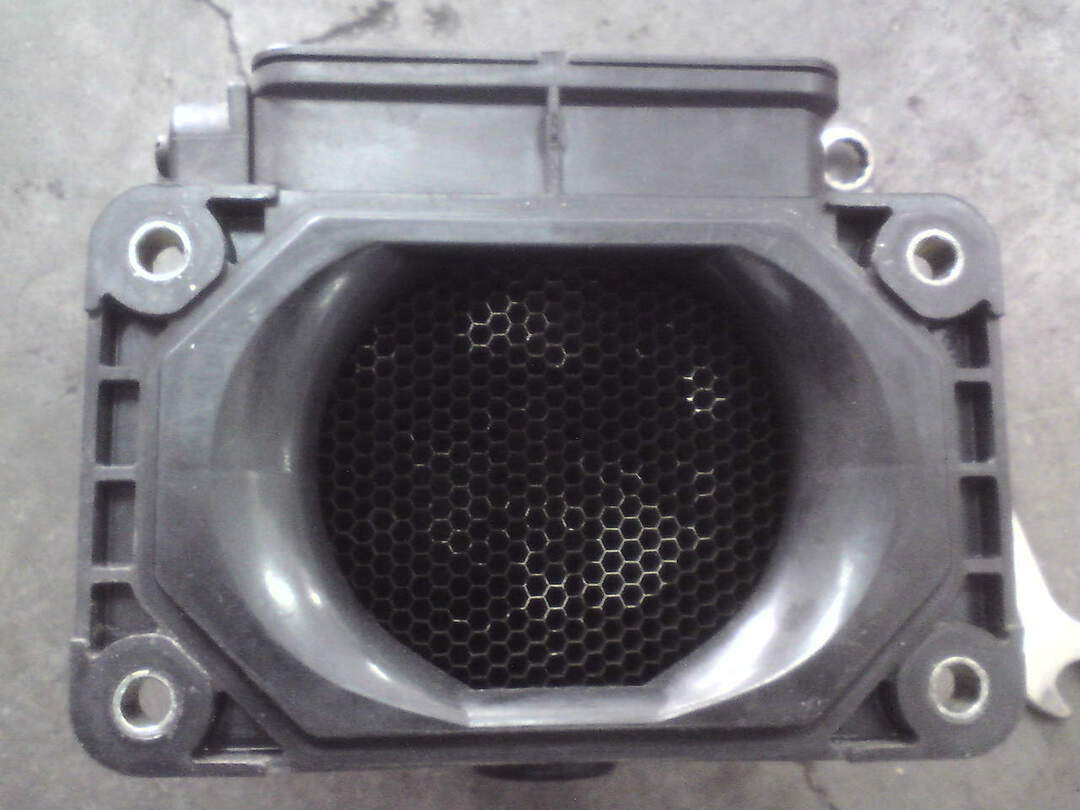

Mass Air Flow Sensor:

Aircon Compressor:



[stutzedward]

Bro, are you sharing just part numbers? If you intend to sell it, please put it under the Mitsubishi Airtrek Marketplace



[DeaconFrost]

Bro, are you sharing just part numbers? If you intend to sell it, please put it under the Mitsubishi Airtrek Marketplace

Sharing pics.

Mitsubishi Airtrek bearing. Note the bulged centre.

VR4 bearing fitted into Mitsubishi Airtrek.

Effects of fitting wrong bearing into Mitsubishi Airtrek:

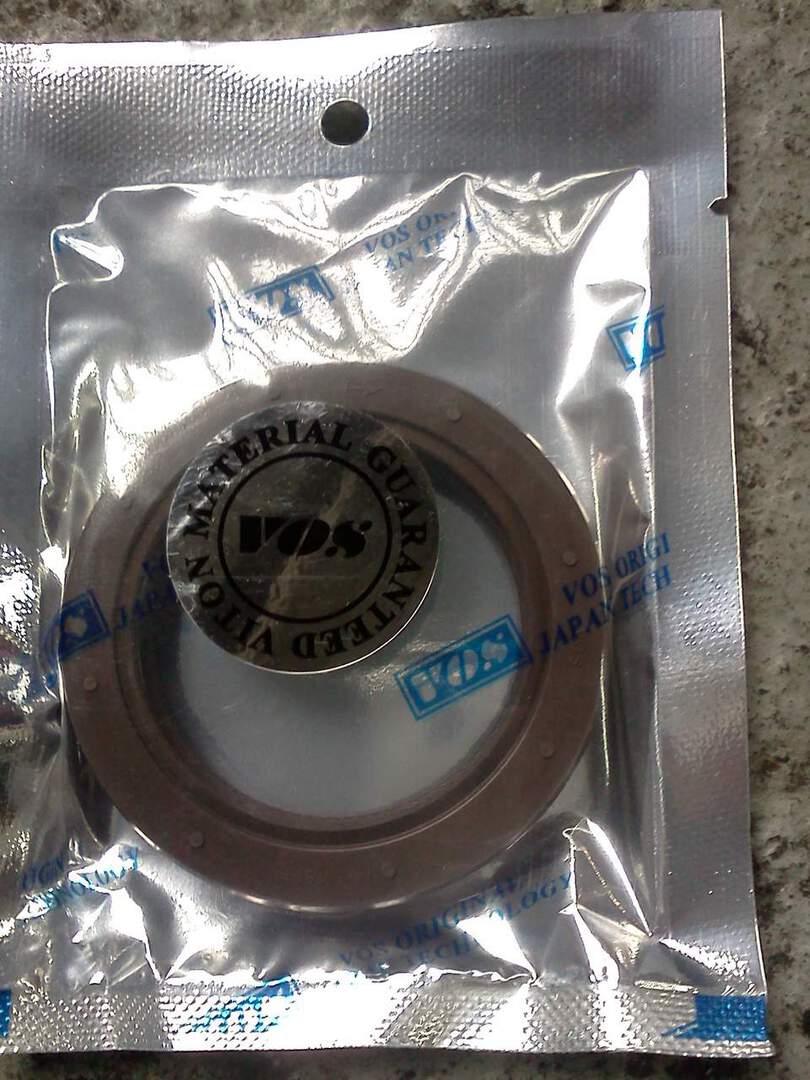

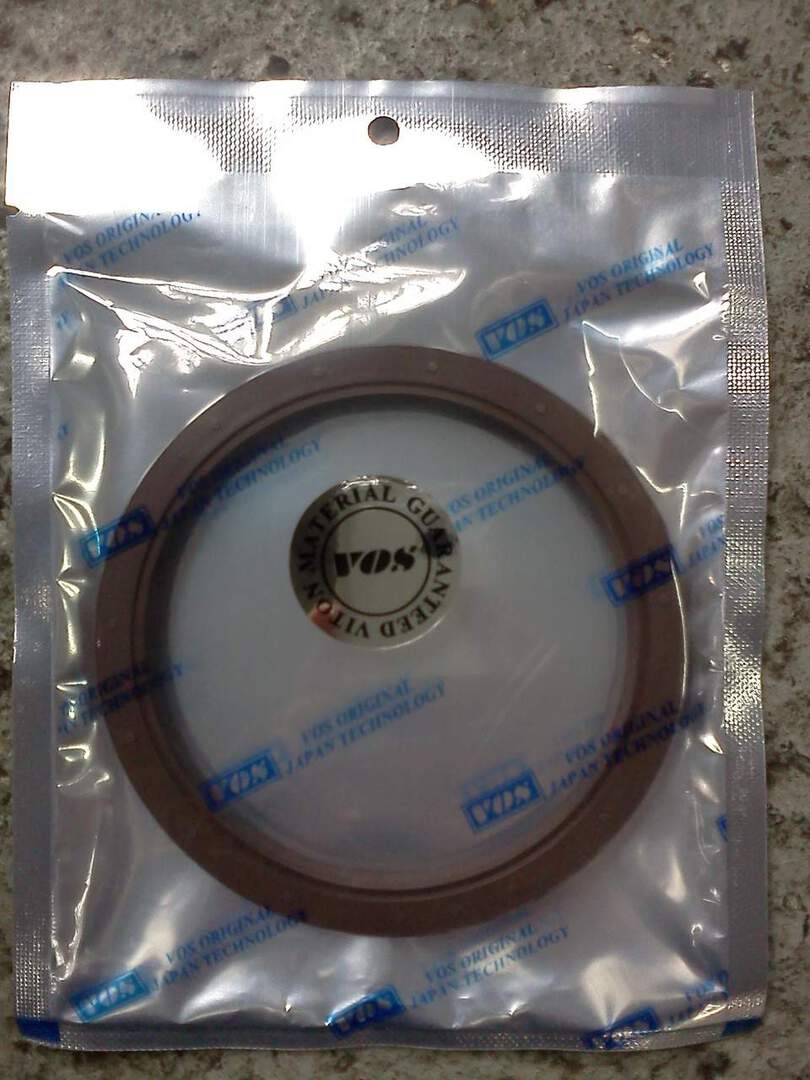

Gearbox Oil Seals:

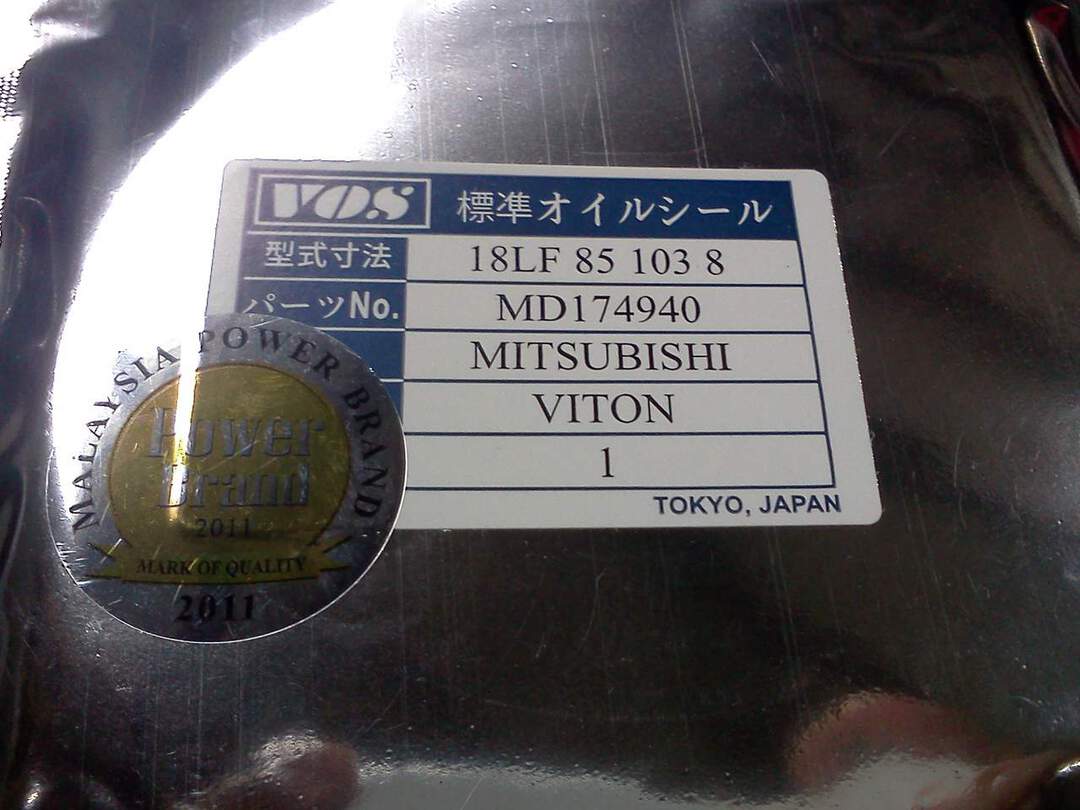

MD174940:

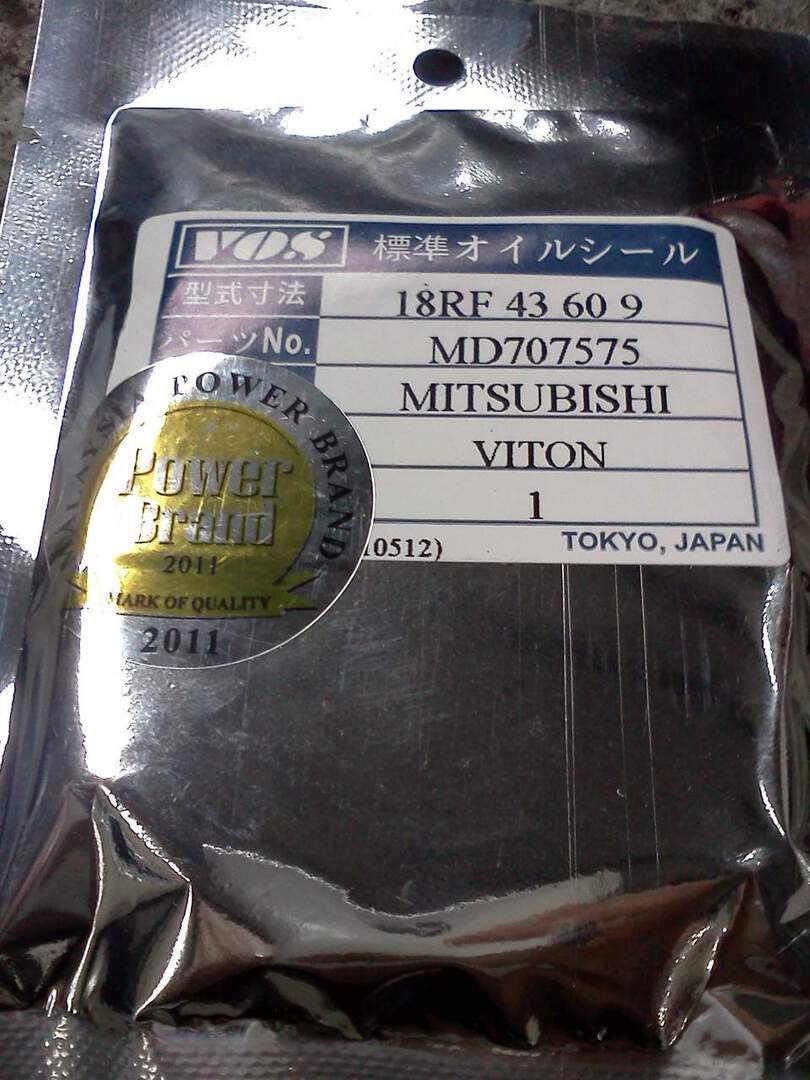

MD707575:



[4gbanger]

its a good info for our reference.. thanks



[carent9]

Cool.......



[stutzedward]

never use VR4 bearing on Airtrek. It's different. I had exactly the same issue. The bearing rail guard cut thru the belt.
